ORTUR Laser Unit 7W Laser Module Adjustable Focus PWM Mode for Desktop Engraving Machine (LU1-2)

$79.00
  • ·Lu1-2 Laser Module fixed-focus laser head, can work continuously without cooling.
  • · Luminous power: 1200-1600MW, better at exquisite engraving of pictures, can meet the needs of delicate and exquisite engraving.
  • ·Electric power: 7w, even you can use a high-power laser unit to "draw" pictures on paper.
  • ·Default focal length: 58MM of 7W laser module, low focal length, safe engraving distance, no need to worry about the hidden danger of laser.
  • ·High-precision control of the laser beam, more stable and continuous output power, long service life, and an average service life of up to 8000 hours.

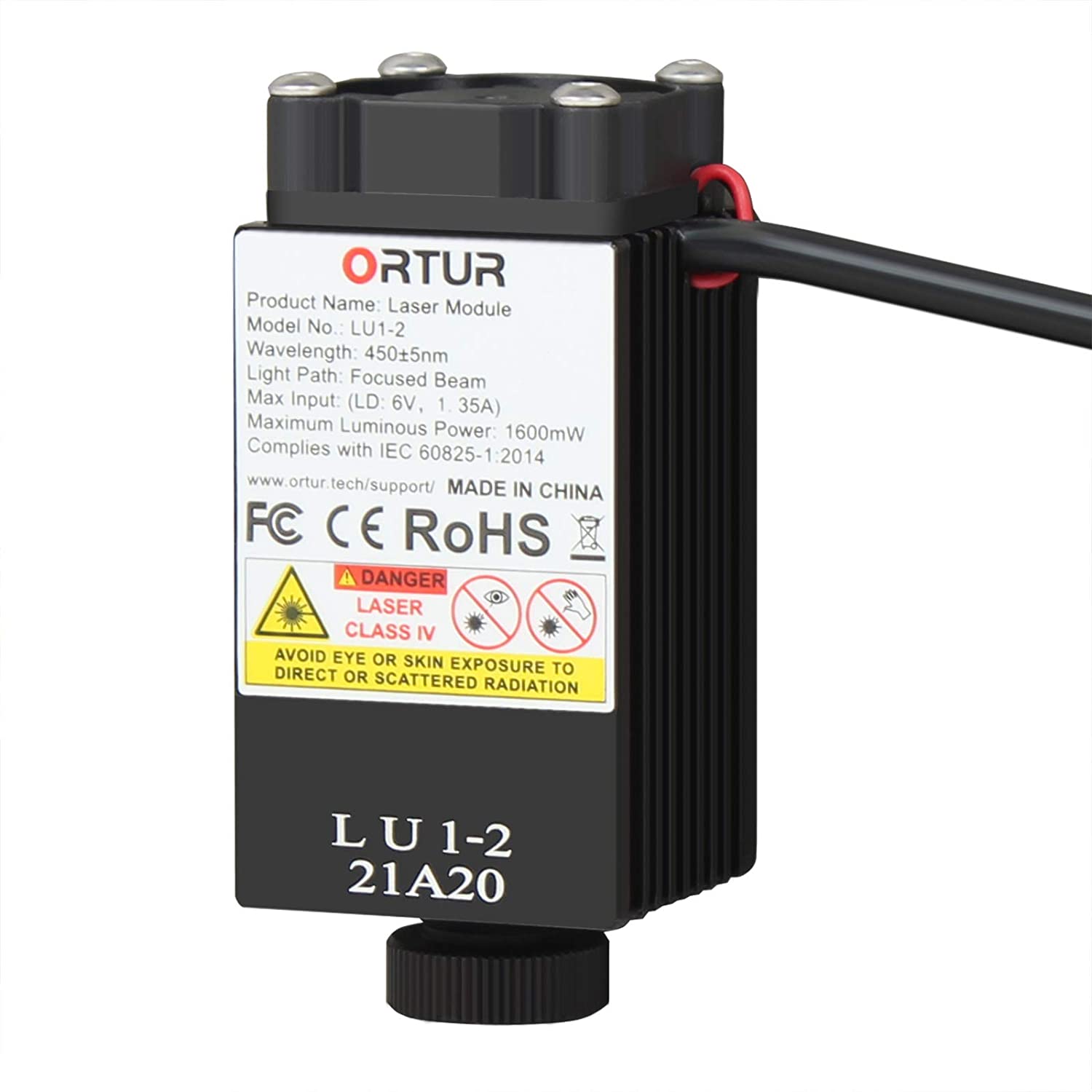

LU1-2

Why choose Madethebest ORTUR?

We are the manufacturer of ORTUR. We only provide the best quality and comprehensive pre-sales and after-sales service to Madethebest customers. If the machine is damaged or parts are missing during transportation or use. We only provide completely free fault detection and replacement parts for Madethebest buyers. At the same time, we provide 7*24 hours quick response on Madethebest. If you need pre-sale consultation or encounter any problems. Please email me. If you encounter technical problems. Please visit [ortur.tech/support] Our engineer Gil will troubleshoot and solve the problem for you. For related information, please visit [ortur.tech/olm2]

Multiple Uses
  Whether to engrave and cut LU1-2 LU1-3 LU1-4
  For more information, please see the page picture LU1-2 laser module LU1-3 laser module LU1-4 laser module Remark
1.6mm Plywood Plate LU1-2 CANNOT Cut Engraving(2000mm/min, S1000) Engraving(3000mm/min, S1000); Cutting(200mm/min, S1000, Run 1 round) Engraving(3000mm/min, S1000); Cutting(200mm/min, S1000, Run 1 round) Darker Colors. Better Results.
Colored A4 Paper (Not White) Engraving(3000mm/min, S600); Cutting(400mm/min, S1000) Engraving(3000mm/min, S200); Cutting(1200mm/min, S1000) Engraving(3000mm/min, S150); Cutting(1400mm/min, S1000) The white paper is nonopaque, the result is not very good.
250g Kraft Paper Engraving(3000mm/min, S1000); Cutting(200mm/min, S1000) Engraving(3000mm/min, S300); Cutting(800mm/min, S1000) Engraving(3000mm/min, S200); Cutting(1000mm/min, S1000) Darker Colors. Better Results.
3mm Paperboard(Cardboard Box) Engraving(3000mm/min, S1000); Cutting(200mm/min, S1000, Run 2 round) Engraving(3000mm/min, S300); Cutting(1000mm/min, S1000, Run 4 round) Engraving(3000mm/min, S200); Cutting(1000mm/min, S1000, Run 3 round) Darker Colors. Better Results.
0.7MM Leather Engraving(3000mm/min, S1000); Cutting(100mm/min, S1000) Engraving(3000mm/min, S400); Cutting(300mm/min, S1000) Engraving(3000mm/min, S400); Cutting(500mm/min, S1000) Darker Colors. Better Results.
Acrylic Engrave Engraving(2000mm/min, S1000) Engraving(3000mm/min, S1000) Engraving(3000mm/min, S800) Need coat the dark color paper onto the transparent Acrylic plate.
Cobblestone, Ceramic LU1-3/LU1-4 CAN Engrave Engraving(100mm/min, S1000) Engraving(100mm/min, S1000) Need coated with acrylic dye heat transfer film.
Powder Coated Metal Paint Sprayed Metal Engrave Engraving(2000mm/min, S1000) Engraving(3000mm/min, S1000) Engraving(3000mm/min, S1000) Engraved in the layer of powder coating.
Plated Metal, Anodised Aluminium Engrave Engraving(2000mm/min, S1000) Engraving(3000mm/min, S1000) Engraving(3000mm/min, S1000) lt's the surface color turned to be other color. The Glossy finishing surface should be painted black by Marker Pen.
Stainless Steel Engrave Engraving(100mm/min, S1000) Engraving(100mm/min, S1000) lt's the surface color turned to be other color. The Glossy finishing surface should be painted black by Marker Pen.


NOTE:



  1. When the laser engraver is working, the operator should not leave it alone, just in case the materials being carved catch fire.
  2. Do NOT operate laser without eye protection (Laser goggles).
  3. Please set up laser engraver in the fireproofing area, with good ventilation.
  4. Please keep minors (especially kids younger than 14 yours old) away from this laser engraver. Minors of any age should not use this laser without direct Adult supervision and proper eye protection
  5. Please avoid strongly impact on the machine.
  6. Please do not touch the laser beam with your hands or any other objects you do not wish to engrave/burn/cut. Serious physical harm is possible if used improperly.
  7. Please do not touch the heat sink, when the laser engraver just stop working, it may scald your hands.
  8. Use the laser engraver in a room that can be closed by a door and ensure that neither laser beams nor stray light can penetrate through the windows.
  9. While using the laser engraver, use door signs or a warning light on the door that indicates the laser engraver is in operation.
